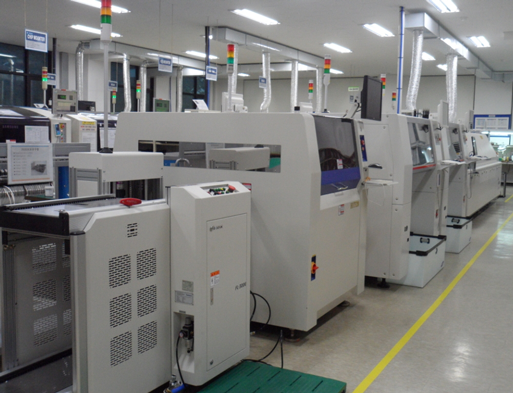

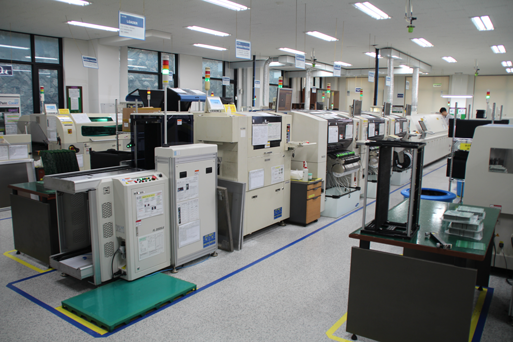

SMT
SMT 'A'
Loader : SML-120X2
Solder Printer : HP-760S
Mounter : SM481 1대, SM421 2대
Reflow : N70-e102S
Unloader : SMU-120X2
SMT 'B'
Loader : FL-200SXLE
Solder Printer : HIT-520L
Mounter : SM481 2대, SM482 1대
Reflow : N70-i102SH
Unloader : FU-200SXLE
SMT 'C'
Loader : FL-300E
Solder Printer : HIT-520
SPI : HS-60
Mounter : SM-482 2대
Reflow : N70-i102SH
Unloader : FU-300E
SMD In Line System (MODEL : SM482) - OPTION (660X400) 장비

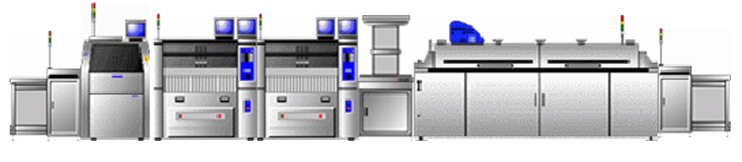

SMT-LINE
LOADER
SCREEN
PRINTER
CHIP
MOUNTER1
CHIP
MOUNTER2
WORK
TABLE
REFLOWER
UNLOADER
MODEL
FL-300E
HIT-520
SM482L
(LONG)
SM482L
(LONG)
FWT-200XL
N70-i102SH
FU-300E
PCB SIZE
(L*W)mm
610*460
650*400
650*460
650*460
610*460
540*410
610*460
LENGHTH
(L)mm
1,900
2,210
2,140
2,140
1,200
5,020
2,654
WEIGHT
(kg)
330
950
1,800
1,800
150
2,600
310
POWER
1PH
100/220V
(0.45KW)
1PH
220V
(3KW)
3PH
220V
(4.7KVA)
3PH
220V
(4.7KVA)
1PH
110/220V
(0.3KW)
3PH
380V
(65KW)
1PH
110/220V
(0.45KW)
AIR
Ni/min
80
700
260
(7kg/㎠)
260
(7kg/㎠)
-
40
80
TTL LINE
LENGTH
17.5M
WIDTH
4M
-
-
-
